industrial Single Shaft Shredder For Plastic Jerrycan

Quantity:
  • ENERPAT

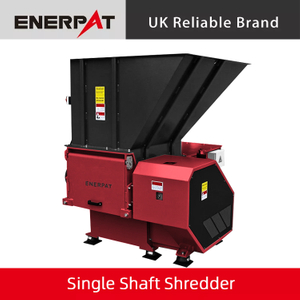

Industrial Single Shaft Shredder For Plastic Jerrycan

Jerry can also written as jerrycan or jerrican, is a liquid container for fuel or water. In the beginning, it is made of metal and designed for military uses to hold 20L fuel. Later it is developed in plastic jerry cans. Many people in developing countries use it to haul and store the drinking water. Plastic jerry cans weigh much lower than steel jerry cans. Also plastic jerry cans are much cheaper to manufacture and transport. So people all over the world prefer to buy fuel or water for domestic use in plastic jerry cans. But what should we do for created jerry cans scrap? Either plastic jerrycan shredder machine or steel jerry can shredder machine is an efficient size reduction machine in whole jerry cans waste recycling.
Both plastic jerry cans and steel jerry cans are good recyclable materials. Take plastic jerry cans for example, firstly you can use a plastic jerrycan shredder machine to minimize the plastic jerry can waste from 5-25L to about 5-10 cm or below which can make sure no longer empty air space in the jerry can. Then shredded or granulated jerry cans can be further recycled to make new products.
ENERPAT brand size reduction machines offer a complete line of jerrycan shredders. Both plastic jerrycan shredder machine and steel jerry can shredder are available in our product range. From small sized shredder or granulator to heavy duty shredder or granulator, we have many models for your jerry cans size reduction purpose. If you do not have so many jerry cans(for example, 15-30 jerry cans per day) and the final required size is 6-12 cm, our small sized granulator is your ideal choice as it is very cost effective machine. If you have bigger or very large amount of size reduction requirements, our medium and large granulator will be more suitable.

Official Photos

MSA-F600-2

1
2
3

Rotor

Genox-Vision-1

  • Chevron rotor design

  • Rotor knives manufactured from special heat treated DC53 steel. They can be rotated and used on four edges before replacement

  • Long life fixed blades that can be adjusted to maintain cutter clearance

  • Wear resistant coating. Optional for applications involving abrasive material such as fibre glass

Screen Basket

Genox Vision Series Screen Basket

  • Quick change screens for accurate particle size control (sizes 12-100mm)

  • Safety limit switch fitted to screen access door to prevent machine operation whilst access door is open

  • Cylinders access door opener mounted on V800-V1500 series for easy opening and access

  • Star screen is available as an option for thin and/or flexible material such as film

Bearings

Genox Vision Series Bearings

  • Oversized, high quality spherical shaft bearings are isoloated from the cutting chamber to prevent product migrations through the grease seals

  • Bearing housing integral machined to ensure the longevity of the bearings

  • Rotor water cooling. Optional water cooling through the bearing housing to the rotor

Ram

Genox Vision Series Ram

  • Segmented shredding chamber floor with brass guides

  • Machined, one-piece segmented floor

  • Advanced adjustable sealing system for the pushing unit

  • Fines discharge chute to the collect the fines during shredding and to protect the  hydraulic power pack

Drives

Genox Vision Series Drives

  • Electric drive motors configured for Star/Delta starting. Fluid coupling mounted on V1200 and V1500

  • Heavy duty reduction gearbox mounted directed onto the rotor shaft

  • Shock absorbing gearbox mountng arrangement to reduce stress on drive components

Hydraulic System

Genox Vision Series Hydraulic System

  • Twin speed hydraulics, faster speed for backwards to maximise the shredding throughput

  • Integrated oil/air cooler to maintain temperature for continuous operation

  • Optional cover insulator for applications that may eject hazard particles such as wood shredding.

Control Panel

Genox Vision Series Control Panel

  • Standalone electrical control panel with Siemens PLC control system and Schneider electrical components.

  • Manual and automatic controls for rotor direction and hydraulic force feeding device

  • Intelligent programming whereby the motor automatically reverses on overload and stops when the machine is idle


Applications

1
2
3

 ·   Plastics
Mouldings, Purgings/Lump, Profiles, Films etc.

 ·   Timber/Wood
 Pallets, Joiners Waste, Green Waste etc.

 ·   Paper & Cardboard
Confidential Documents, Production Waste, Packaging Materials etc.

 ·   Copper Cable
Household, Telecoms and Industrial Cables including S.W.A

 ·    Aluminum
Used Beverage Cans (UBC's), Swarf, Cables etc.

 ·   Textiles
Carpet (Rolls & Tiles), Garments etc.

 ·   Security Destruction
Counterfeit Items, Faulty Goods, Out of Date Stock etc.
