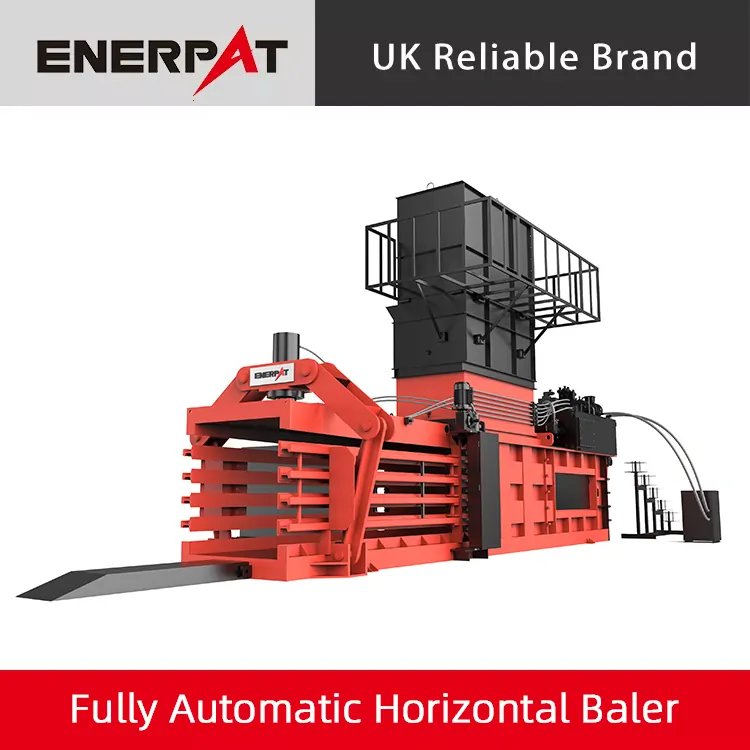

Small Fully Automatic Horizontal Baler HBA40-7272

Quantity:
  • HBA40-7272
  • ENERPAT

Small Fully Automatic Horizontal Cardboard Baler

Enerpat started produce the automatic horizontal balers since 1986 and our first baler made for the company names shwon in  Manchester .for nowdays we produce more and more automatic horizontal balers for compacting waste paper,cardboard,scrap plastic,waste tyre and straw.the automatic tying bale tech makes our balers working stable ,fast and good. the baler comes with SIEMENS motor,Parker hydraulic system .


HBA40-7272 Official Photo

HBA40-7272-全自动卧式打包机-1

全自动卧式打包机-2

QQ图片20180423143130


Conveyor

1

  • with feeding conveyor to fill the baler evenly and continuously

  • we install conveyor for all our auto horizontal baler

  • the thickness of the steel plate for the conveyor at least 3mm

  • all conveyors are made by enerpat


Special Press Ram

2

  • with E-ECO special press ram to compact bulky materials



Control Panel

3


  • Wide Touch Screen with High Resolution. Within the control unit is the capability of selecting the correct settings through the programmable logistic controller. You therefore can easily perform any fine-tuning, making the machine optimized to work perfectly for your requirements.



 Independent Cooling System

QQ图片20180608095001

  • we supply 3 hydraulic system cooling choice

  • (1) Industrial cooling machine,like our Home Air Conditioning,we can set one ideal temperature for the hydraulic system,once the temperature exceed the setted data,the machine will Alarm for warnings.which system also support 24 hours running.

  • (2) Electrical cooling fun

  • (3) Water cooling machine


Tying Bale System 1

QQ图片20180608140232

  • we buy the cutting blades for the auto tying bale system from Germany directly which can cut the steel baling wire fast in seconds. also the good quality blades material make sure which keeps for long time,save the spare parts cost for our customers.


Tying Bale System 2

QQ图片20180608140239

  • The auto tying bale system designed by Mr Mark engineer,who research the auto tying bale system for more than 20 years for USA and Europe baler company.also the SKF bearing which support the relibale running of this device.


Top Press Ram

QQ图片20180608140243

  • Unique Bale Density Control system automatically and continuously regulates the tensioning force exerted on the baled material. For "Slick materials", the Bale Density control system creates greater squeezing force to achieve the highest bale density possible. No adjustments are required.

More Models,Your Choice

Model


Bale Size
(mm
(WxHxL)

Bale Weight
(Cardboard)
(kg

Motor Power
(kw


Output
(t/h


Machine Size
(m)

(LxWxH)

HBA-40-7272720x720x500~1500200~35022+1.5+2.21-3 6.3x3.0x2.1
HBA-60-7585750x850x500~1500300~45030+1.5+2.22-4 6.8x3.0x2.15
HBA-80-110751100x750x500~1500400~60037+1.5+2.24-8 8.0x3.7x3.8
HBA-100-110751100x750x500~1800600~80045+1.5+2.26-9 10x3.7x3.8
HBA-100-1101101100x1100x500~1800800~100045+1.5+2.27-12 10x3.7x4.6
HBA-120-1101301100x1300x500~1800900~110055+1.5+2.29-1311x3.7x4.9
HBA-150-1101301100x1300x500~18001100~130045x2+1.5+2.214-18 11x3.7x4.9
HBA-180-1101301100x1300x500~18001200~140055x2+1.5+2.217-2511.6x3.7x5.5
HBA-200-1101301100x1300x500~18001400~160055x2+1.5+2.217-2511.6x3.7x5.5


Press force (t) 40
Bale Size  720x 720x 500mm
Motor (kW) 22
Empty Cycle Time  15 Second
Feeding Openiong  1000x640
Throughput 1.0-3.0T
Quantity Of Baling Wire  4 Pcs
Diameter Of Wire  2.5mm
Machine Length (mm) 6300
Machine Width (mm) 3000
Machine Height (mm) 2100
Machine Weight (t) 8.0
Container Loading  One 20HQ Container
