Metal-Clad Cable Granulator Machine

Metal-Clad (MC) cable, also known as Metal Sheathed Cable, presents a different recycling difficulty from insulated copper wire. Its interlocking aluminum spiral sheath surrounds multiple insulated copper conductors and a grounding wire. The outer metal layer adds another material to the recovery process.
The ENERPAT Metal-Clad Cable Granulator Machine is designed to recover materials from scrap MC cable. Before selecting a processing eqiupment, it is important to evaluate about the aluminum sheath, insulated copper cores, and grounding wire. For U.S. customers, ENERPAT's Ohio operation provides a local point of contact for equipment consultation. Selected equipment may be available from stock, depending on the model, configuration, and current inventory.


Availability:



Inquire

Brand:
ENERPAT

Product Video

Watch the Enerpat Copper Cable Granulator Video

The product video shows how the cable being processed and explain how the line handles its interlocking sheath and internal insulated conductors. For buyers, watching the actual feedstock and process is more informative. It helps them assess whether the setup matches their cable.

Product Description

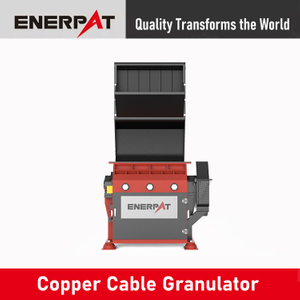

Metal-Clad Cable Granulator Machine

MC cable, also known as metal-clad cable or metal-sheathed cable, is commonly used in commercial buildings and data centers in the United States. It typically contains multiple insulated conductors and a grounding wire protected by an interlocking aluminum spiral sheath. For recyclers, the key issue is how to process the different materials without treating MC cable as if it were ordinary insulated wire.

Metal Sheathed Cable Granulator: Key Considerations for MC Cable Recycling

1. Handling Interlocking Aluminum Sheath

Our ENERPAT Metal-Clad Cable Granulator Machine is engineered specifically to tackle MC cable’s spiral interlocking aluminum sheath, which sets MC scrap apart from ordinary insulated copper cables. The robust cutting structure of this granulator can break through the tough outer metal layer, eliminating the extra complexity in recycling MC cable. We assess your cable structure upfront to match the machine configuration to your feedstock.

2. Efficient Copper Liberation from Multi-Conductor MC Cable

This granulator is optimized for MC cable built with multiple insulated conductors plus grounding wire. Its precision cutting rotor design fully strips insulation from copper conductors. With customizable cutting parameters, the machine delivers consistent copper liberation and stable copper recovery performance for your MC cable input.

3. Integrated Preprocessing & Granulation Function

The ENERPAT Metal Sheathed Cable Granulator can be paired with optional pre-shredding modules as one complete system. It handles bulky metal-sheathed cable and feeds prepared material directly into granulation chamber. Machine settings are adjustable after material testing. It is highly suitable for MC scrap combining metal sheath and insulated copper core, reducing manual pre-treatment work.

4. Simultaneous Multi-Material Separation Capacity

Our Metal-Clad Cable Granulator system is built to separate multiple valuable fractions in one workflow: clean copper granules from inner conductors and aluminum fragments from outer metal sheath. The machine’s air separation unit can be tuned based on your material composition. If you need separate collection of aluminum sheath, we configure the granulator and sorting system accordingly at the project assessment stage.

5. Flexible Machine Configuration for Variable MC Cable Feed

ENERPAT Metal Sheathed Cable Granulator adapts to mixed MC cable scrap sourced from commercial buildings and data centers with varying diameters, lengths and physical conditions. The machine can be adjusted to handle production offcuts and mixed incoming cables. Submit your material samples and photos, and we will fine-tune the granulator setup to decide if extra separation or auxiliary pre-processing units are required for your line.

Product Applications

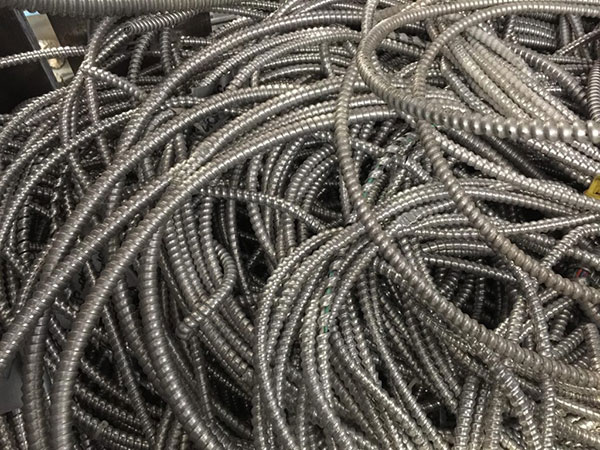

Metal-Clad Cable

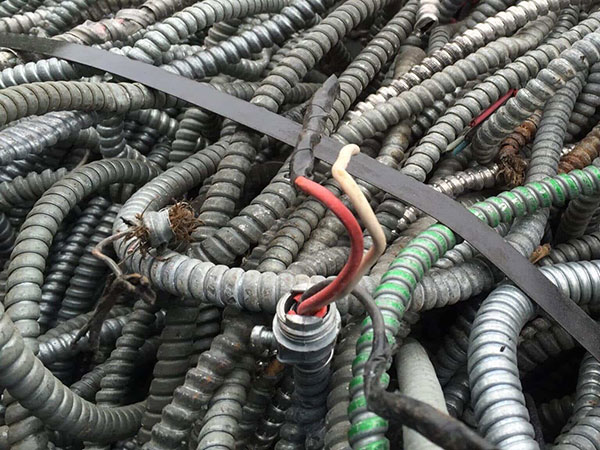

Metal Sheathed Cable

End Products

MC cable contains more than insulated copper conductors. Its interlocking aluminum sheath must also be considered when planning a recycling process. Before choosing an MC Cable Granulator Machine, confirm the cable construction, the materials you want to recover, and the expected processing volume.

Product Details

DETALES

Optional Pre-shredding for Bulky or Tangled MC Cable

Lagrer or tangled multi-core power cable may not steadibly go into a fine granulator. An optional for double-shaft shredder can be installed at the front line to reduce bulky cable into smaller pieces and then go into the granulation. Whether choosing pre-shredding depends on cable size, sheath condition and capacity reqiured.
Fine Granualtion of Copper and Insulation Liberation

After the pre-shredding, the cable enters the fine granulator, and it is reduced into smaller particles to help copper conductors seperate from the insulation. For suitable feedstock and production line configurations, this stage can be configured to produce particles smaller than 3mm for downstream seperation. The target particle size should be confirmed according to the cable struture and seperation reqiurements.
Vibrating Screening for Consistent Materail Classification

After granulation, the mixed cooper and plastic material will pass through a vibrating screen for particle classification and then go into the air seperation. The system uses a 1,200 mm-wide screen made with 304 stainless steel and Q235 carbon steel. The vibration amplitude can be adjusted from 3-8 mm, allowing the screening to maintain an even material flow.
Air Gravity Seperation of Copper and Plastic

After granulation and screenig, the pre-processing material enters the air-gravity seperation stage. This system takes differences in particle weight and aerodynamic behaviour to seperate heavier copper material from lighter plastic insulation. The seperation effect depends on cable condition ,paricle dimension, and overall line configuration.
Central Dust Collection For Cleaner Operation

Shredding, granualtion and screening can produce dust during cable recycling. A central dust collection system can connect revelant processing points to collect air dust ang help keep the working area clean. The collection system shoul match with the eqiupment arrangement and site reqiurements.
Interlinked Conveyors for Material Transfer

Conveying eqiupments link the shreeding, granualtion, screening and seperation stages, moving one eqiupment to the working area, reducing manual handling. The layout should follow the process sequence, feedstock point and available floor space, helping the line operate as a coordinated system.

SUBMIT

The defining challenge in MC cable recycling is its layered construction. The aluminum sheath protects the internal conductors, but it also changes how the scrap needs to be prepared for material recovery.
For recycling business, firstly they should make sure which materials are the incoming material. Some companies may focus on the copper recycling, and others may collect the aluminum sheath alone. Different recycling goals will effect the preprocessing way and the whole production line.
ENERPAT's equipment recommendation should begin with the actual MC cable, not just the product name. By reviewing material samples, cable size, and operation need, the two parts can discuss with needed processing stages, and then confirm problems which should be finally configured through testing.

Get A Quote

Why Choose Us

ENERPAT has a U.S. operation in Ohio, giving American buyers a local point of contact for equipment consultation and project coordination. Customers can discuss their MC cable specifications and recycling requirements with our team.

U.S. Local Team and Ohio Operation
Selected ENERPAT MC Cable Granulator Machine may be available from U.S. stock. Availability and delivery timing depend on the machine model, configuration, and current inventory.

Selected Equipment May Be Available from Stock
Installation, commissioning, operator training, and maintenance arrangements should be discussed. The support scope needs to be confirmed for the specific machine or line being purchased.

Discuss Installation and After-sales Requirements in Advance
Backed by factory equipment warranty, professional on-site commissioning by US engineers, and 24/7 remote technical assistance, we keep your cable granulator recycling machine running smoothly with maximum uptime.

Industry-Leading Warranty & Support

FAQs

Q1. Can ENERPAT test our multi-core power copper cable before we purchase the equipment?

Yes. Before equipment selection, material assessment and sample testing can be discussed. Provide cable photos, approximate dimensions, insulation details, and expected processing volume. The actual sample-testing arrangement should be confirmed with the ENERPAT team.
Q2. Can a standard copper wire granulator process MC cable directly?

Not every MC cable should be assumed suitable for direct feeding into a standard copper wire granulator. The interlocking aluminum sheath changes the material structure and may require preliminary processing. ENERPAT should assess the cable construction and intended recovery route before confirming a suitable configuration.
Q3. Does ENERPAT have equipment in stock in the United States?

Selected equipment may be available through ENERPAT's U.S. operation in Ohio. Availability depends on the model, configuration, and current inventory. Please confirm stock status and estimated delivery timing for the specific equipment you require.
Q4. Can ENERPAT assist with installation and operator training?

Installation, commissioning, and operator training can be discussed during project planning. The exact arrangements depend on the selected equipment and the agreed project scope. Please confirm these requirements with ENERPAT before finalizing the purchase.
Q5. Can replacement parts be supplied if the machine requires maintenance?

Replacement-part requirements can be discussed with ENERPAT when selecting the equipment. Buyers should confirm the parts list, availability, and ordering arrangements for their specific configuration to support maintenance planning and reduce the risk of unnecessary downtime.

Technical Data Sheet

Model	WG-400S	WG-600S	WG-800S
Motor Power	27 kW / 36.2 HP	41 kW / 55.0 HP	90 kW / 120.7 HP
Cables Range	< 20 mm / < 0.79 in	0.2–20 mm / 0.008–0.79 in	0.2–30 mm / 0.008–1.18 in
Machine Size	4400×2700×2450 mm / 173.2×106.3×96.5 in	5000×3000×2500 mm / 196.9×118.1×98.4 in	11500×9500×2300 mm / 452.8×374.0×90.6 in
Machine Weight	2,500 kg / 5,512 lbs	4,000 kg / 8,818 lbs	7,000 kg / 15,432 lbs
